型 號 | 名 稱 | 調節(jié)量程 | 介 質 | 規(guī)格尺寸 |
ZHK-OUT-30 | 多表位壓力表連接校驗臺 | （-0.1-25）MPa | 空氣 | 430mmX312mmX90mm |
ZHK-OUT-30 | 多表位壓力表連接校驗臺 | （1-60）MPa | 液壓 | 430mmX312mmX90mm |
本網站有關產品技術指標僅供參考，不足之處請指教！

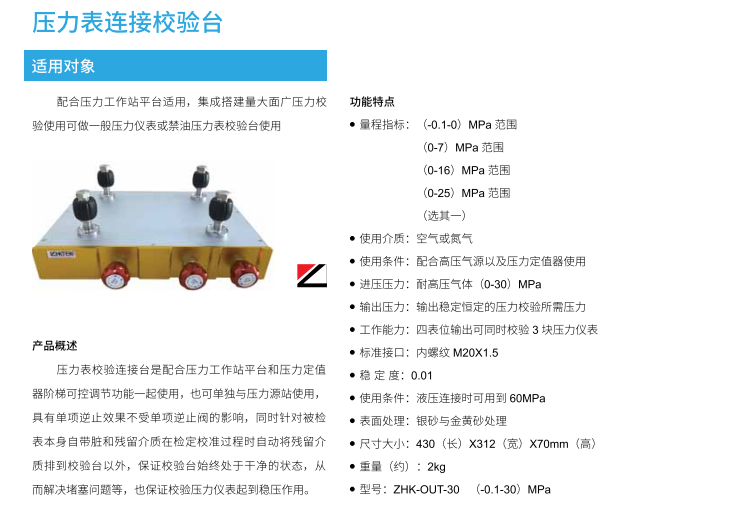

Pressure gauge connection calibration table
Product application: applicable to the calibration connection of any (- 0.1-60) MPa pressure instrument
It is applied to the pressure calibration of pointer pressure gauge, pressure sensor, differential pressure sensor, spring tube and pressure sensitive element, and is used for batch calibration, verification and connection expansion.
Applicable to:

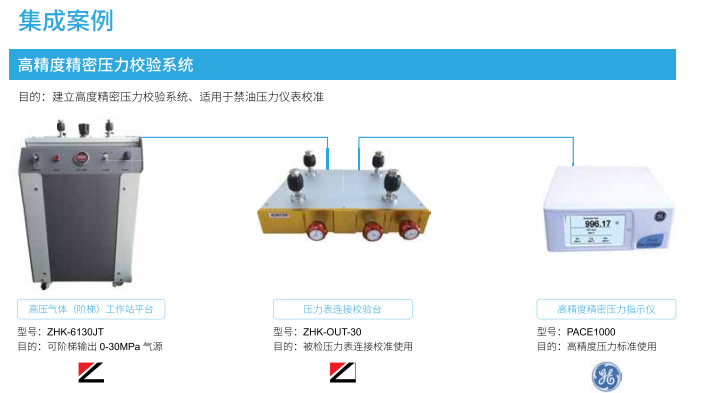

Cooperate with the pressure workstation platform to build a large-scale pressure calibration system
Product overview:
The pressure gauge calibration connection table is used together with the pressure workstation platform and the step controllable adjustment function of the pressure setting device, and can also be used alone with the pressure source station (pressure workstation platform) and the air pressure station, vacuum station and hydraulic station. It has one-way check effect and is not affected by the one-way check valve. At the same time, for the dirty and residual media of the tested gauge itself, the residual media will be discharged outside the calibration table during the verification and calibration, Ensure that the calibration table is always in a clean state, so as to solve the problem of blockage, and also ensure that the calibration pressure instrument plays a role in stabilizing pressure.
Functional features:
v Four gauge internal thread m20x1 Standard output of 5
v Medium: air, hydraulic (water or oil)
v Pressure range: (- 0.1-60) MPa
v With control valve, fine-tuning valve, low-pressure fine-tuning valve and pressure relief valve
v Working capacity: four meters are output, and three pressure instruments can be verified at the same time
v Standard interface: internal thread m20x1 five
v Stability: 0.01
v Surface treatment: silver and yellow sand blasting
v Structure: Desktop
v Size: 430mmx312mmx70mm
v Weight (about): 2kg
v Model: ZHK-OUT-30
